This interesting ECG is a great one for your more advanced students who are ready to discuss the anatomical and physiological differences between the AV blocks, as opposed to just measuring PR intervals.  It shows a sinus rhythm with an atrial rate of 72/minute.  Second-degree AV block causes every other p wave to be blocked, resulting in a pulse rate of 36 beats per minute.  In addition, the ECG shows right bundle branch block, as evidenced by the wide QRS (136 ms), rsR' pattern in V1, and the wide little S wave in Lead I.

When second-degree AVB conducts 2:1, it can sometimes be difficult to determine if the block is Type I (occuring above the Bundle of His), or Type II (occuring at or below the Bundle of His).  This is because two p waves must be conducted in a row to see the tell-tale progressive prolongation of the PR interval seen in Type I (Wenkebach).

Two clues that this block is Type II are:  1) the presence of right bundle branch block.  Type II blocks are sub-Hisian blocks, often in the fascicles, and the right bundle branch block is a fascicle block.  Many Type II AV blocks show signs of right bundle branch block;   2) The non-conducted p waves occur well clear of the refractory periods of the preceding beats.  In Type I blocks, the QRS is eventually dropped because the p wave occurs in the refractory beat of the preceding QRS. Only one beat is missed.  In Type II blocks, p waves that SHOULD have conducted, don't.  Sometimes, more than one p wave in a row will be non-conducted.

To continue on a topic started by Jason Roediger in his February ECG Challenge -

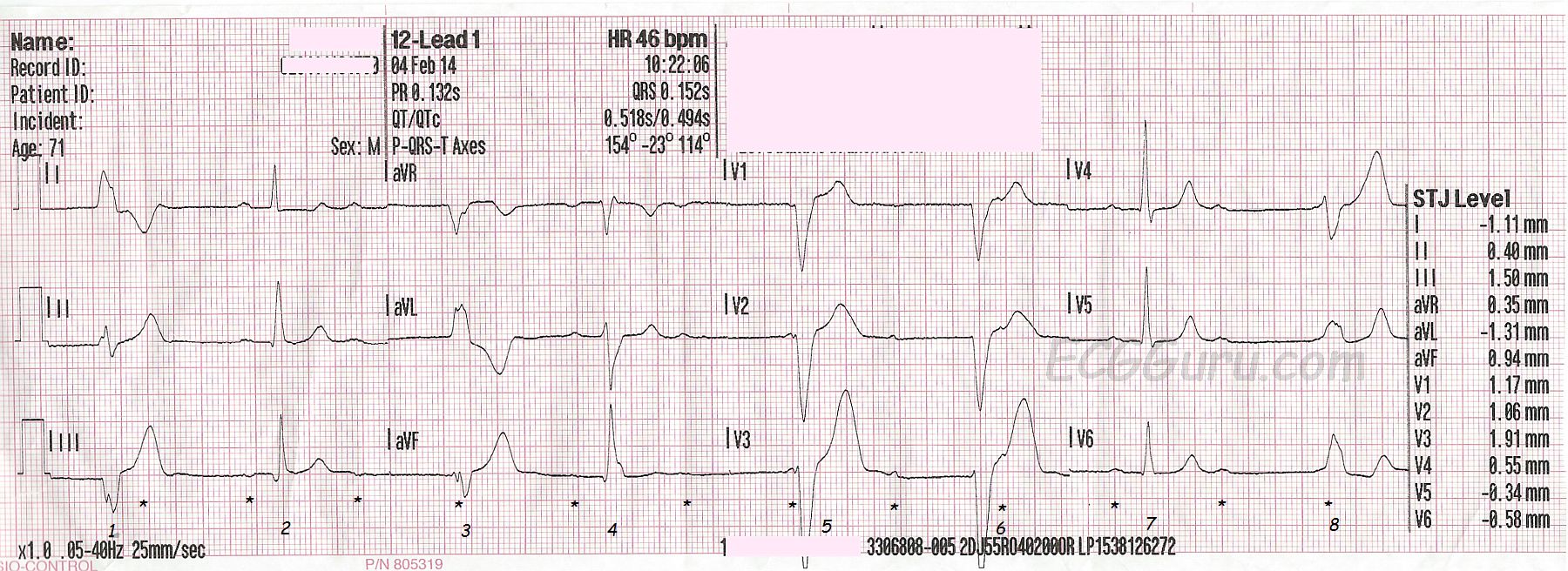

This series of two ECGs was taken from a 71-year-old man who complained of dizziness and near-syncope the day before these ECGs were done.  He was seen in an Emergency Dept., and advised to follow up with a neurologist. On the day of these ECGs, still feeling dizzy and like he would pass out, he called EMS again.  He denied chest pain.  We do not know his past medical history.  The first ECG was taken at 10:22 am.  His BP was 177/76 and SpO2 99%.  It shows a regular sinus rhythm (p waves marked by small asterisks) at a rate of about 75 / min.  There is a high-grade AV block, meaning that some P waves are conducted (beats 2, 4, 7), but most are not.  In addition, he has an escape rhythm, probably ventricular, at a rate of just over 40 / min.  The overall effect of the escape rhythm is to keep the heart rate above 40 beats per minute.

Fifteen minutes later, at 10:37 am, another ECG is taken.  The patient's BP is 154/86.   This ECG shows the high-grade AV block quite well, but this time, most of the QRS complexes on the strip are conducted from P waves.  It is difficult to see all the P waves in every lead, but if you remember that all three channels are run simultaneously, you will find evidence of the P waves in at least one of the three leads represented at any given time.  (Example:  V1, V2, and V3 - V3 shows the P waves well).  The next-to-last QRS on the page is interesting, as it has a different PRI than the normally conducting beats.  Is this a fusion beat or an aberrantly-conducted one?   It probably does not matter to the outcome of the patient.

The slowing of the rate in the second strip gives us a clue as to why the patient felt dizzy, but the blood pressures recorded did not catch hypotension.  Possibly if the patient had been standing instead of lying on a stretcher, we would have seen more hemodynamic changes.

Unfortunately, we do not know the outcome of this patient, but it seems he is a candidate for an implanted pacemaker.

Today's basic rhythm strip illustrates second-degree AV block, Type II.  Even though there is fine baseline artifact present, it is easy to measure the P-to-P interval, and your students will be able to see that every third P wave falls in the T wave.  The PR intervals are constant and the atrial rate is about 110/min.  The ventricular rate results from a 3:1 conduction ratio, and is less than 30/min.  For your students who have learned about bundle branch block, this strip shows a right bundle branch block, which is very common in second-degree Type II blocks, as they usually represent "intermittent tri-fascicular block" - that is, two of the three fascicles in the bundle branches are blocked, and one is intermittently blocked.  Other combinations of complete block and intermittent block are possible, resulting in intermittent failure of conduction.  This strip can start a lively classroom discussion about treatment of bradycardias.  See comments below for discussion of terminology, second-degree AVB and high-grade AVB.  This strip can be used as a good example of high-grade AVB.
